TamoGraph Site Survey voor macOS
We have great news: TamoGraph, a powerful wireless site survey and RF planning application, is now available for macOS.
Just like its Windows counterpart, TamoGraph Site Survey for Mac features simple and fast data collection, allows you to conduct passive and active surveys, and supports comprehensive WLAN analysis with easy-to-understand visualizations of signal level, interference, access point coverage areas, data rates, network issues, etc. The application includes an RF planner for designing new Wi-Fi networks in accordance with your capacity and coverage requirements.
You will also find all of the other features familiar from the Windows version, such as spectrum analysis, GPS support, customizable PDF reports, and much more.
Please remember that this beta version is a work in progress. If you find bugs, please be sure to report them to us.

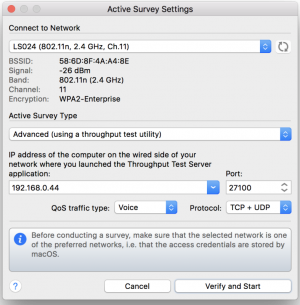

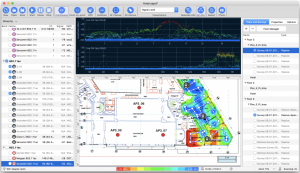

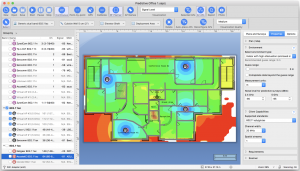

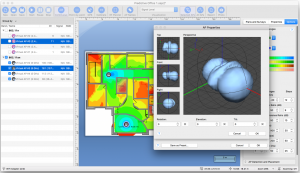

Screen Shots
What’s Cool
TamoGraph for Mac is a fine piece of engineering. We have invested a lot of time and effort into making sure that we provide the best experiences for our customers. One the most important things that the macOS version users will definitely appreciate is support for the built-in MacBook Wi-Fi adapter. You don’t need to buy a specific, supported Wi-Fi adapter model; it works with your MacBook out of the box. Moreover, TamoGraph is the only site survey application for macOS that actually captures and analyzes Wi-Fi packets. That’s right: the competing products cannot do this, which makes their surveys inaccurate. Needless to say, we also support the latest Mac technologies, such as retina displays and a touch bar.
Differences between the Windows and macOS Versions
| Microsoft Windows | macOS | |
|---|---|---|
| Compatible Adapters | Requires specific Wi-Fi adapter models for passive surveys. | Works with the Wi-Fi adapter built into your MacBook and does not require specific additional adapters. |
| Driver or Packet Capture Engine Installation | You need to install the special drivers that come with this product. | You need to install the packet capture engine. |
| Simultaneous Active + Passive Surveys | Supported, as long as two different adapters are plugged in. | Not supported. |
| Using Multiple Adapters | Supported. | Not supported. |
Additionally, some menu items are located in different places on the two versions.
System Requirements and Download
System Requirements and Download
- macOS Yosemite (10.10), El Capitan (10.11), Sierra (10.12), or High Sierra (10.13).
- MacBook, MacBook Pro, or MacBook Air manufactured in 2011 or later.
- 4 GB of RAM.
- 60 MB of free disk space.
Optionally:
- An NMEA-compliant GPS receiver, if you plan to perform GPS-assisted site surveys.
- A USB spectrum analyzer, Wi-Spy by MetaGeek, if you plan to perform spectrum analysis surveys.
You can also run TamoGraph on a desktop computer. This operating mode may be feasible if you would like to collect Wi-Fi data using portable computers and then import, merge, and analyze the data on an iMac based on faster hardware and using a larger display.
An evaluation version is available in the Download Area. To purchase this product, visit the Product Catalog.
TamoSoft Site Survey
TamoGraph is a powerful and user-friendly wireless site survey software tool for collecting, visualizing, and analyzing 802.11 a/b/g/n/ac Wi-Fi data
Samenvatting
- Gemakkelijke eenvoudige en snelle verzameling van Wi-Fi gegevens
- Passieve, actieve en predictive survey
- Uitgebreide WLAN-analyse Spectrum analyse met eenvoudige visualisaties
- Automatische Access Point locatie detectie
- Gedetailleerde informatie over elk Access Point of kanaal
- Maximale datasnelheid, fabrikant en het type encryptie
- Volledige ondersteuning van de 802.11ac, 802.11a/b/g/n netwerken.
- GPS ondersteuning voor buiten (outdoor) surveys
- Gedetailleerde rapportage in PDF-en HTML-formaat
- Ook te gebruiken voor Apple © systemen.
Gebruikt u TamoGraph Site Survey al en wilt u upgraden naar de nieuwste versie of uw licentie veranderen? Stuur ons dan uw huidige licentiecode dan ontvangt u van ons een aantrekkelijke aanbieding.
